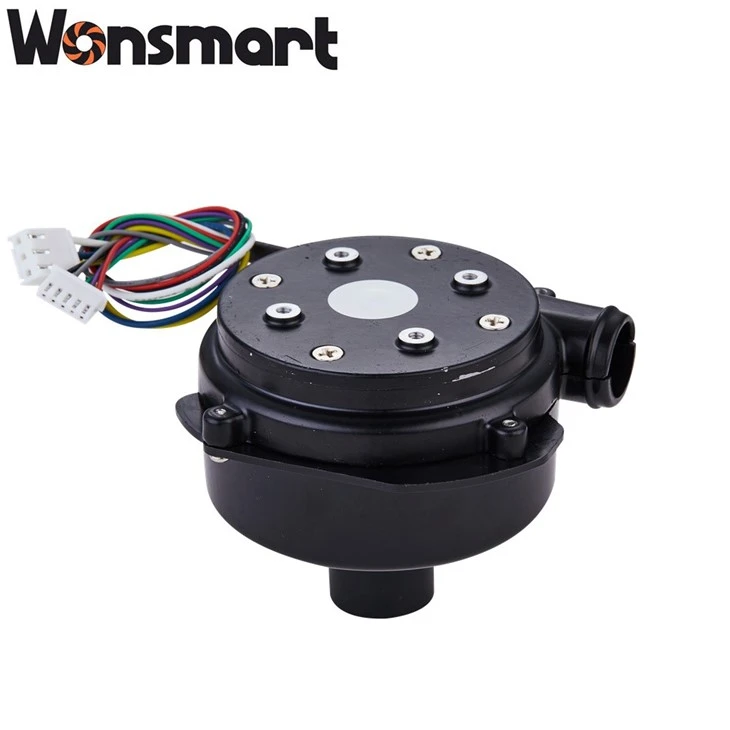

Wonsmart Mini Air Blower Ntxuam WS9250C-24-240-X200
1. Lub tshuab hluav taws xob mini los ntawm winsmart nta ib qho chaw nres nkoj inlet uas tuaj yeem txuas nrog lub kav dej kom yooj yim siv.
2. Lub tshuab blower no yuav tsum muaj tus tsav tsheb ua haujlwm thiab yog DC brushless kiv cua.
3. Lub compact loj ntawm lub tshuab blower no ua rau nws yooj yim rau kev sib xyaw ua ke nrog lub cheeb ntawm 92mm * 50mm thiab qhov hluav taws xob txoj kab uas hla ntawm 17mm.
4. Nrog rau kev ua neej nyob ntawm 25, 000 teev ntawm kev siv tas li ntawm 25 degree, lub tshuab nqus tsev no tau tsim kom kav ntev.
Blower nta
| Qauv | Qhov hluav taws xob | Max.air ntws | Max.air siab | Tam sim no ntau yam | Lub zog ntau | Ntau yam ceev | Suab nrov | Qhov hnyav | MTTF |
Kev khiav haujlwm Qhov kub thiab txias |
Hom lub cev muaj zog | Hom kabmob | Hall sensor | |
| VDC | m3/h | Kpa | A | W | rpm ua | dba ua | g | teev | degree | |||||
 |
WS9250C -24-240-X200 | 24 | 57 | 8.5 | 3.5-7.2 | 84-172.8 | 24000-31000 | 73 | 420 | 25000 | -20~+60 | Peb theem brushless | NMB Pob Bearing | 120 |
 |
WS{0}}X200 | 24 | 57 | 8.5 | 3.5-7.2 | 84-172.8 | 24000-31000 |
Kev kos duab
Tswv yim:
Qhov loj me (L * W * H)91.4mm * 90.6mm * 57.5 hli
Convex platform (W * H) 80.8mm * 20mm
Qhov hluav taws xobφ17 hli
nkagφ22.5 hli
Blower Performance
WS9250C -24-240-X200
| @Nkauj tawm tshiab | @Ntawm static siab | @Thaum ua haujlwm Point | |||||||
| Ceev | Tam sim no | Huab cua | Ceev | Tam sim no | Cua siab | Cua siab | Ceev | Tam sim no | Cua ntws |
| 24 000 rpm | 7.2a | 57m3/h | 31 000 rpm | 3.5a | 8.5kp ua | 6kp ua | 27000rpm ib | 5.8a | 30m3/h |
WS{0}}X200
| @Nkauj tawm tshiab | @Ntawm static siab | @Thaum ua haujlwm Point | |||||||
| Ceev | Tam sim no | Huab cua | Ceev | Tam sim no | Cua siab | Cua siab | Ceev | Tam sim no | Cua ntws |
| 24 000 rpm | 7.2a | 57m3/h | 31 000 rpm | 3.5a | 8.5kp ua | 6kp ua | 27000rpm ib | 5.8a | 30m3/h |
Thov mloog: Qauv WS9250 thiab qauv WS9250C tsuas yog muaj qhov sib txawv ntawm qhov sib txawv, qhov kev ua haujlwm tsis zoo ib yam.
Khoom piav qhia
1. Lub Wonsmart Mini Air Blower nta cov cua nkag uas tuaj yeem txuas nrog lub kav dej kom ua haujlwm yooj yim.
2. Qhov no yog DC brushless blower uas yuav tsum muaj tus tsav tsheb ua haujlwm.
3. Ntsuas tsuas yog 92mm nyob rau hauv txoj kab uas hla thiab 50mm nyob rau hauv qhov siab, lub tshuab no yog compact thiab nws lub qhov hluav taws xob muaj ib txoj kab uas hla ntawm 17mm.
4. Nws muaj lub sijhawm ua haujlwm tsis tu ncua txog li 25, 000 teev ntawm qhov kub txog li 25 degree .
5. Ib qho yuav tsum muaj rau txhua tus neeg xav tau lub tshuab me me, ua haujlwm tau zoo rau lawv qhov project lossis daim ntawv thov.
Dc brushless zoo
DC brushless motors yog ib qho kev hloov pauv ntawm cov qauv DC lub cev muaj zog uas tshem tawm qhov xav tau ntawm cov txhuam hniav thiab cov commutator. Hloov chaw, lawv cia siab rau txoj kev tswj hwm txoj hauv kev los tswj cov dej ntws ntawm tam sim no thiab tsim kom muaj qhov sib nqus sib nqus.
Ib qho ntawm qhov zoo tshaj plaws ntawm DC brushless motors yog lawv lub neej ntev. Txij li thaum tsis muaj txhuam kom hnav, cov motors no tuaj yeem khiav tau ntau txhiab teev yam tsis xav tau kev saib xyuas tseem ceeb. Qhov no ua rau lawv zoo tagnrho rau kev siv hauv cov ntawv thov uas txuas ntxiv ua haujlwm ntev yog qhov tseem ceeb, xws li hauv cov neeg hlau, tsheb fais fab, thiab cov tshuab ua haujlwm.
DC brushless motors kuj muaj txiaj ntsig zoo, ua tsaug rau lawv cov kev tswj hwm qib siab. Los ntawm kev tswj cov dej ntws tam sim no thiab qhov nrawm ntawm qhov sib nqus sib nqus, cov motors no tuaj yeem ua tiav qib siab ntawm kev ua haujlwm thiab txo kev siv zog. Qhov no ua rau lawv qhov kev xaiv zoo tshaj plaws rau cov ntawv thov uas lub zog ua haujlwm yog qhov tseem ceeb tshaj plaws, xws li hauv HVAC systems, twj, thiab kiv cua.
Lwm qhov txiaj ntsig tseem ceeb ntawm DC brushless motors yog lawv cov kev tswj xyuas meej. Nrog rau kev tswj hwm hluav taws xob siab tshaj plaws, cov motors no tuaj yeem ua tiav qhov ceev ceev thiab tswj lub zog, ua rau lawv zoo tagnrho rau kev siv neeg hlau thiab lwm yam kev siv uas yuav tsum tau txav mus los.
Cov txheej txheem ntau lawm
Peb qhov kev pabcuam:
- 1. Kev them nyiaj yug online: Peb muab kev txhawb nqa online zoo los teb cov lus nug lossis kev txhawj xeeb uas lawv muaj.
- 2. Cov Kws Tshaj Lij Tshaj Lij Tshaj Lij: Peb pab pawg kws tshaj lij yog cov kws tshaj lij hauv lawv txoj haujlwm thiab mob siab rau muab peb cov neeg siv khoom nrog cov kev daws teeb meem zoo thiab muaj txiaj ntsig rau txhua qhov teeb meem uas lawv yuav ntsib.
- 3. Teb ceev: Peb paub tias lub sij hawm yog qhov tseem ceeb ntawm kev daws teeb meem. Peb ib txwm siv zog los muab kev pabcuam sai, txhim khu kev qha kom txo qis txhua lub sijhawm rau peb cov neeg siv khoom.
Yog tias koj muaj tej yam tshwj xeeb uas yuav tsum tau los yog xav tau, thov koj xav tiv tauj peb. Peb zoo siab los muab peb cov kev pabcuam zoo tshaj plaws rau koj!
