| 24V mini kho mob dc brushless blower WS7040AL{2}}V200 |

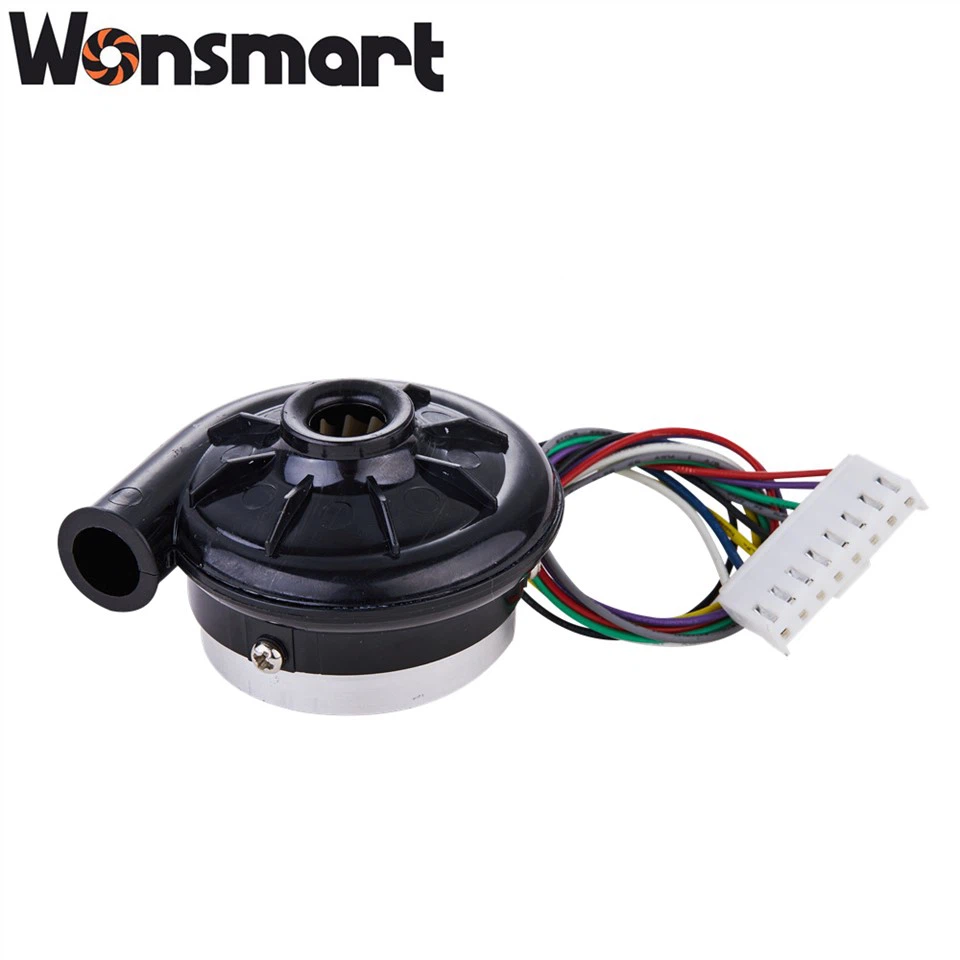

Wonsmart 60mm 7kpa ntsiag to 24V mini kho mob dc brushless blower haum rau cua cushion tshuab / roj cell / khoom siv kho mob xws li CPAP / Bipa / lub tshuab ua pa.
| Blower nta |
Hom: Centrifugal Ntxuam
Muaj feem xyuam Kev Lag Luam: Chaw Tsim Khoom, khoom siv kho mob
Hom hluav taws xob tam sim no: DC
Hniav Khoom: Aluminium
Mounting: kev lag luam sib dhos
Qhov chaw ntawm Keeb Kwm: Zhejiang, Suav
Hom Lub Npe: WONSMART
Tus Qauv Zauv: WS7040AL-24-V200
Qhov hluav taws xob: 24vdc
Daim ntawv pov thawj: CE, RoHS
Warranty: 1 Xyoo
Kev Pabcuam Tomqab Muag Khoom: Kev them nyiaj yug online
Khoom npe: 24V mini kho mob dc brushless blower
Loj: D60 * H40mm
Qhov hnyav: 134g
Cov kabmob: NMB pob bearing
Driver board: Sab nraud
Life time(MTTF): >10, 000 teev
Suab nrov: 62dB
Lub cev muaj zog: Peb Theem DC Brushless Tsav
Static siab: 7.6kPa
| Kev kos duab |
| Blower Performance |
WS7040AL-24-V200 blower tuaj yeem ncav cuag qhov siab tshaj 16m3/h airflow ntawm 0 kpa siab thiab siab tshaj 6.5kpa zoo li qub siab.Thaum lub tshuab no khiav ntawm 4.5kPa tsis kam yog tias peb teeb 100% PWM, nws muaj qhov siab tshaj plaws tso tawm cua zog thaum lub tshuab blower no khiav ntawm 4.5kPa tsis kam yog tias peb teeb tsa 100% PWM, nws muaj qhov ua tau zoo tshaj plaws.Lwm qhov chaw thau khoom xa mus rau hauv qab PQ nkhaus:
| DC brushless blower kom zoo dua |
(1) WS7040AL-24-V200 blower yog nrog brushless motors thiab NMB pob bearings sab hauv uas qhia tau hais tias lub neej ntev heev; MTTF ntawm lub tshuab no tuaj yeem ncav cuag ntau dua 20,000 teev ntawm 20degree C ib puag ncig kub.
(2) Lub tshuab no yuav tsum tsis muaj kev saib xyuas;
(3) Lub tshuab hluav taws xob no tau tsav los ntawm lub tshuab tsis siv lub cev muaj zog muaj ntau yam kev tswj hwm kev sib txawv xws li kev tswj ceev, ceev mem tes tso zis, nrawm nrawm, nres thiab lwm yam.it tuaj yeem tswj tau los ntawm lub tshuab ntse thiab cov cuab yeej siv tau yooj yim.
(4) Tsav los ntawm tus neeg tsav tsheb tsis muaj lub cev muaj zog lub tshuab blower yuav muaj tshaj tam sim no, hauv qab / dhau qhov hluav taws xob, kev tiv thaiv kev ruaj ntseg.
| Daim ntawv thov |
Lub tshuab no tuaj yeem siv dav rau hauv tshuab cushion, CPAP tshuab, tshuab ua pa.
| Yuav ua li cas siv lub blower kom raug: |
(1) Lub tshuab no tuaj yeem khiav ntawm CCW kev taw qhia nkaus xwb. Rov qab lub impeller khiav kev taw qhia tsis tuaj yeem hloov pauv huab cua.
(2) Lim rau hauv qhov nkag los tiv thaiv lub tshuab nqus plua plav thiab dej.
(3) Ua kom qhov kub thiab txias ib puag ncig kom tsawg li sai tau kom lub tshuab ua lub neej ntev dua.
| FAQ: |
Q: Koj puas yog tuam txhab lag luam lossis chaw tsim khoom?
A: Peb yog cov chaw tsim khoom tshwj xeeb hauv Brushlees DC blower ntau tshaj 10 xyoo, thiab peb xa tawm peb cov khoom rau cov neeg siv khoom ncaj qha.
Q: Thaum twg kuv tuaj yeem tau txais tus nqi?
A: Feem ntau peb yuav xa cov lus hais rau cov neeg siv khoom hauv 8 teev tom qab peb tau txais kev nug los ntawm koj.
Q: Dab tsi yog Brushless DC lub cev muaj zog?
A: Ib lub tshuab hluav taws xob tsis muaj hluav taws xob (BLDC lub cev muaj zog lossis BL lub cev muaj zog), tseem hu ua lub tshuab hluav taws xob sib hloov (ECM lossis EC lub cev muaj zog) lossis synchronous DC lub cev muaj zog, yog lub tshuab hluav taws xob synchronous siv hluav taws xob ncaj qha (DC) fais fab mov. Nws siv lub tshuab hluav taws xob kaw lub voj voog los hloov DC tam sim no mus rau lub cev muaj zog windings ua cov hlau nplaum uas zoo tig hauv qhov chaw thiab cov hlau nplaum rotor mus tas li. Tus maub los kho cov theem thiab amplitude ntawm DC tam sim no pulses los tswj qhov ceev thiab torque ntawm lub cev muaj zog. Qhov kev tswj hwm no yog lwm txoj hauv kev rau cov neeg kho tshuab commutator (brushes) siv nyob rau hauv ntau cov pa hluav taws xob motors.
Kev tsim kho ntawm lub cev tsis muaj lub cev muaj zog feem ntau zoo ib yam li cov hlau nplaum ruaj khov synchronous lub cev muaj zog (PMSM), tab sis tuaj yeem yog lub cev hloov pauv tsis txaus siab, lossis lub cev muaj zog (asynchronous). Lawv kuj tseem tuaj yeem siv cov hlau nplaum neodymium thiab yog cov neeg tawm tsam (lub stator nyob ib puag ncig ntawm lub rotor), cov neeg ua haujlwm (lub rotor yog ib puag ncig los ntawm stator), lossis axial (lub rotor thiab stator yog tiaj tus thiab sib npaug).[1]
Qhov zoo ntawm lub tshuab tsis siv lub tshuab txhuam txhuam yog lub zog-rau-hnyav piv, kev kub ceev, ze li kev tswj ceev ceev (rpm) thiab lub zog, kev ua haujlwm siab, thiab kev saib xyuas qis. Brushless motors pom cov ntawv thov hauv cov chaw xws li khoos phis tawj peripherals (disk drives, tshuab luam ntawv), cov cuab yeej siv hluav taws xob, thiab cov tsheb xws li cov qauv dav hlau mus rau tsheb. Hauv cov tshuab ntxhua khaub ncaws niaj hnub no, brushless DC motors tau tso cai hloov cov roj hmab siv thiab gearboxes los ntawm kev tsim qauv ncaj qha.
